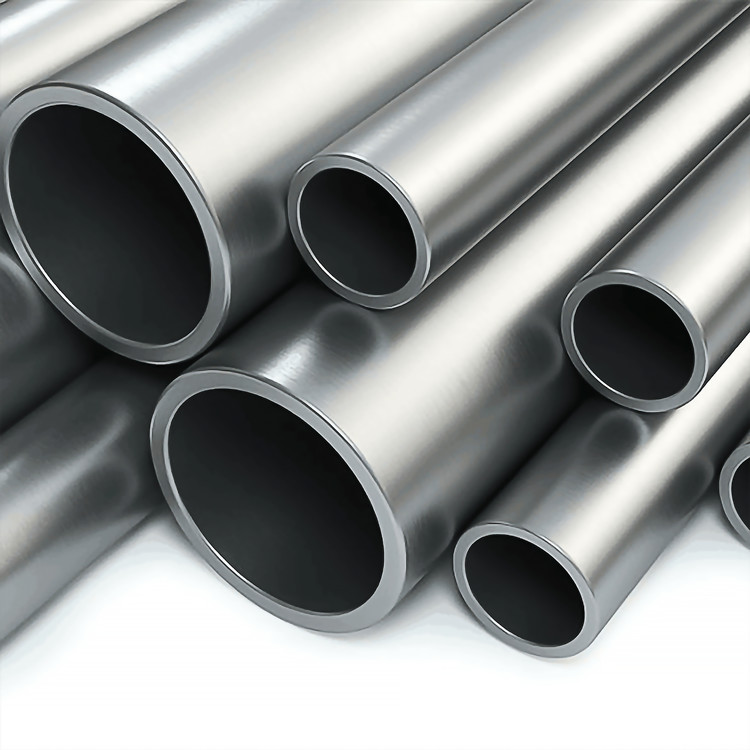

ASTM A312 TP304 Stainless Steel Seamless Pipe Cold Rolled Pickled And Annealed
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
Description :
304 and 304L (low carbon version) is a low carbon Austenitic alloy. By keeping the carbon at 0.03% max, it minimizes carbide precipitation during welding.304 stainless steel is the most widely used stainless steel. 304 is non-magnetic under annealing conditions, but after cold working (such as stamping,stretching, bending, rolling),part of the Austenitic structure may be converted into martensite and therefore weakly magnetic.304 has good resistance to atmospheric corrosion and oxidation.The high nickel-chromium alloy content allows it excellent corrosion resistance and is widely used in the food industry as a standard food grade stainless steel.
Chemical Composition :
| HEAT NO. | CHEMICAL COMPOSITION (%) |
| C | Mn | P | S | Si | Ni | Cr | Mo |
| STAND. | MIN. |
|
|
|
|
| 8.00 | 18.00 |
|
| MAX. | 0.080 | 2.00 | 0.045 | 0.030 | 1.00 | 11.00 | 20.00 |
|
Mechanical Properties:
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness |
| Rockwell B (HR B) | Brinell (HB) |
| TP304 | 515 | 205 | 35 | 90 | 187 |
Dimensions:
O.D : 1/8" NB TO 32" NB , (10.29MM-812.80MM)
W.T: SCH 10S, SCH 40S, SCH 80S, SCH160, SCH XXS.
l Annealed and Picked
l 100% PMI Tested
l EN10204.3.1B Mill Test Certificate
l Third Party Inspection Accepted
Packing:
With plastic caps to both ends, wrapped with Poly bags, packed into bundles or plywood boxes as required.
Applications:
Petrochemical Industry, Nuclear Power, Pharmaceutical Machinery, Aircraft and Aerospace, Automobile Industry, Heavy Industry, Manufacturing, Mining, Shipbuilding, Construction, Pulp & Paper, Food, Medical Technology, Environmental Protection, High Pressure Boiler, Heat Exchanger, Pressure Vessel, Condenser, Water Conservancy, Electric Power,etc.
